MBDC HHC8100 Service    Film



            LF-demo             LF-reader demo programm 1.0

          UHF-demo            UHF-reader demo programm 1.0

    MBDC Keyboard       MBDC Keyboard 3.1

Settings - Feature - Custom Key:
Home Key: HOME
Left Scan Key: Left Scan
Right Scan Key: KEY_4
Center Scan Key: KEY_6

Scanner - Settings:
Open Scan:
on
Output Mode: Editbox Mode
Sounds: on
Vibrate: off
Additional content: Enter Key
Decoding mode: UTF-8
Continuous mode: off
Indicator lamp: on
Barcode Settings - Symbology Config:
Code 128
Code 39
Data Matrix
Matrix 2 or 5
QRCode

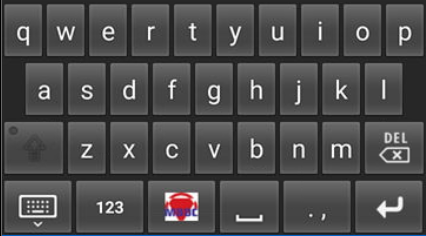

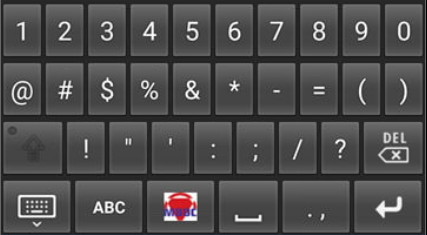

MBDC Keyboard Settings

Settings - System - Languages & input:
Virtual keyboard - Manage keyboards:
MBDC Keyboard:
on

Swipe down from the top of the screen
Change keyboard:
MBDC Keyboard

Press & Hold 3 sec:

Select config: Config 1
Config name:
MBDC

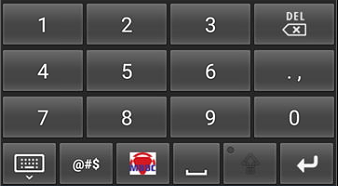

Select keyboard: Numeric

MBDC Com Unit: on
Address:
www.mbdc.cloud   (IP-adres or Name ComUnit - www.mbdc.cloud = Test)

Dual read out: off
Tab:
off
Enter:
off

Tab: off
Enter: on

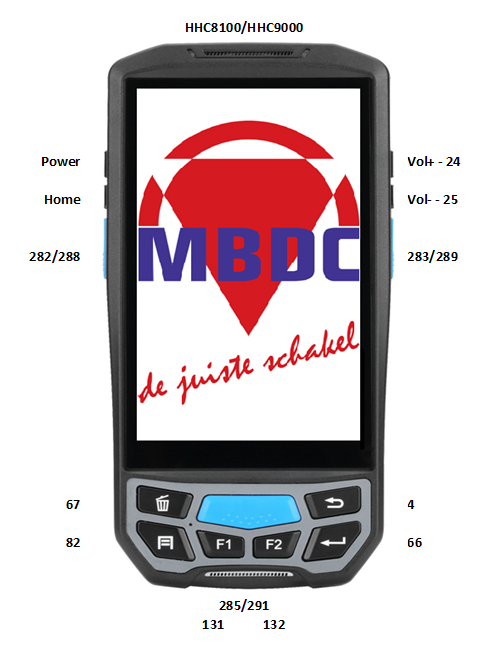

Keycode:
131
Keycode shift:
132
Readout:
com0
Readout shift:
com1

Start programm: on
ProgName:
com.mbdc.hhc.lf81 (LF)   com.mbdc.hhcuhf81 (UHF)
Keycode:
283

Keyboard input: on
Power Timeout: 0
Power UHF dBm:
26 (UHF)
Scanner timeout: 5
First digit: 0
Last digit:
15 (LF)   0 (UHF)
Tab Enter:
Enter
Sounds: Scan and Error
Prefix: -
Suffix:
-

Operation:

= = Read Com0   (123.1 = Test)

= + = Read Com1   (543210987654321 = Test)
